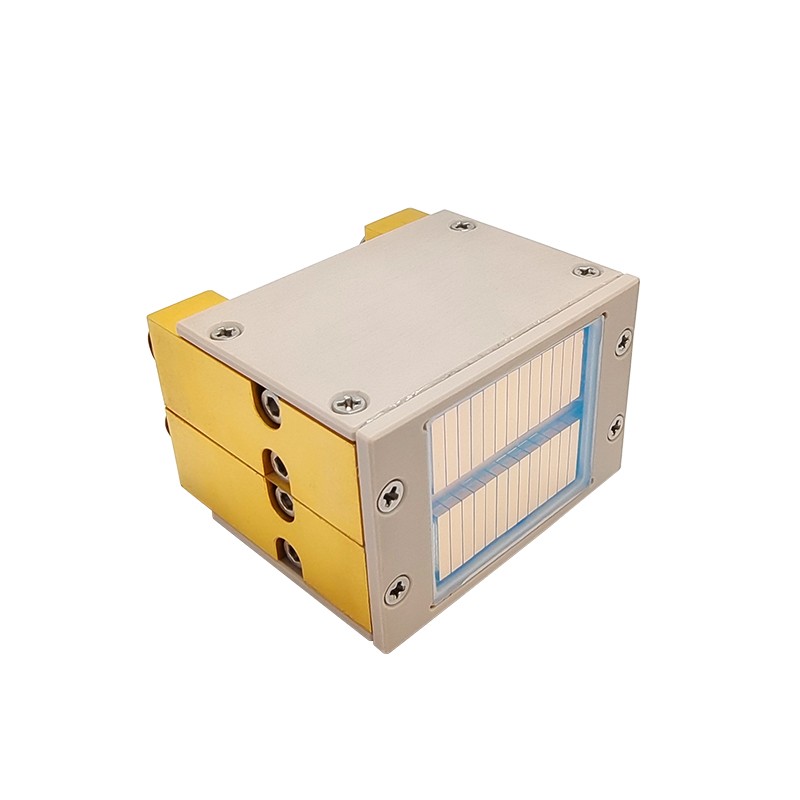

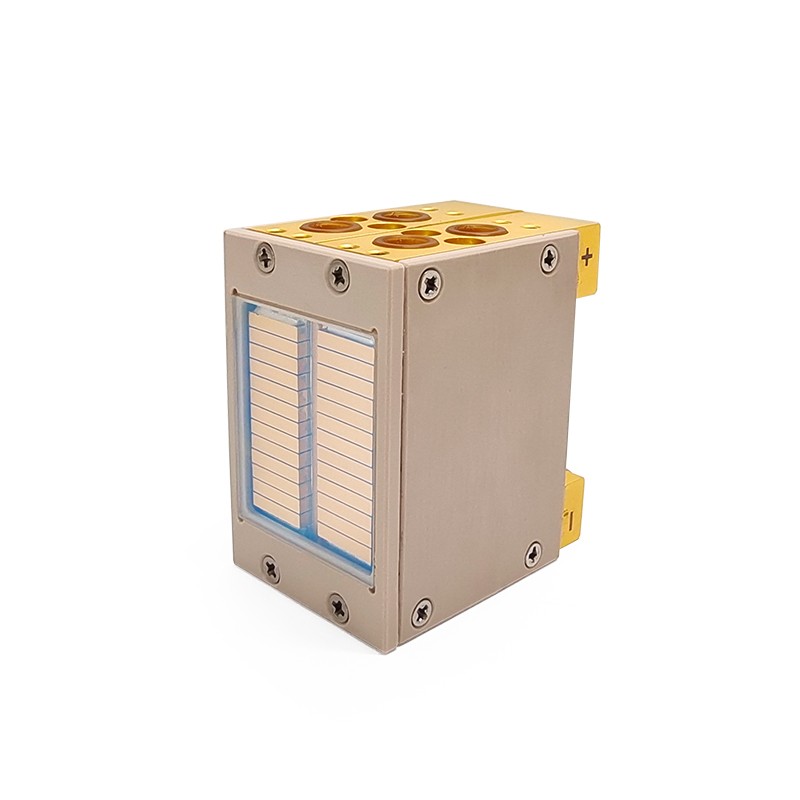

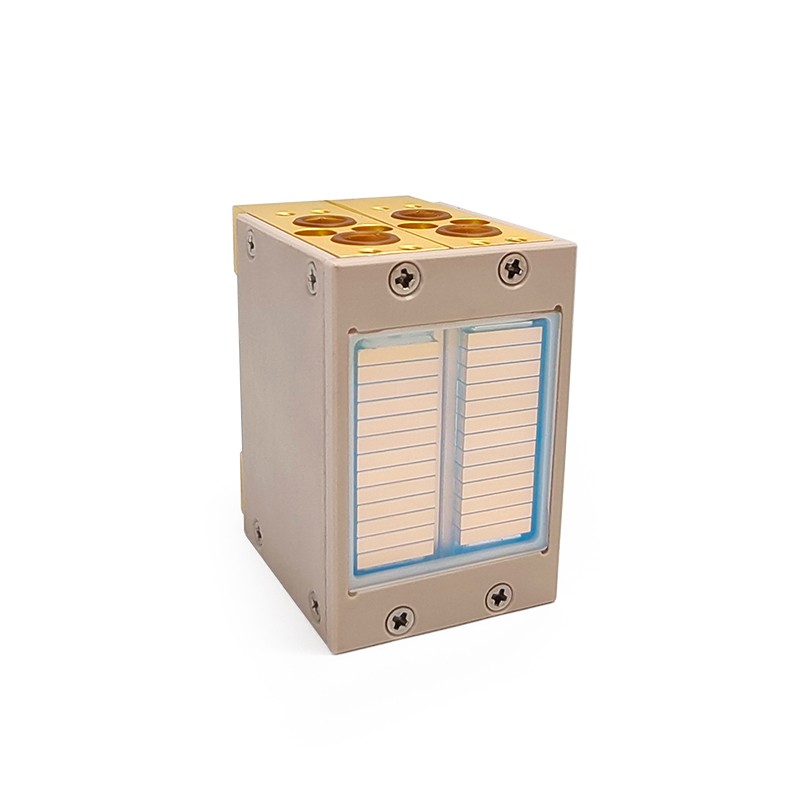

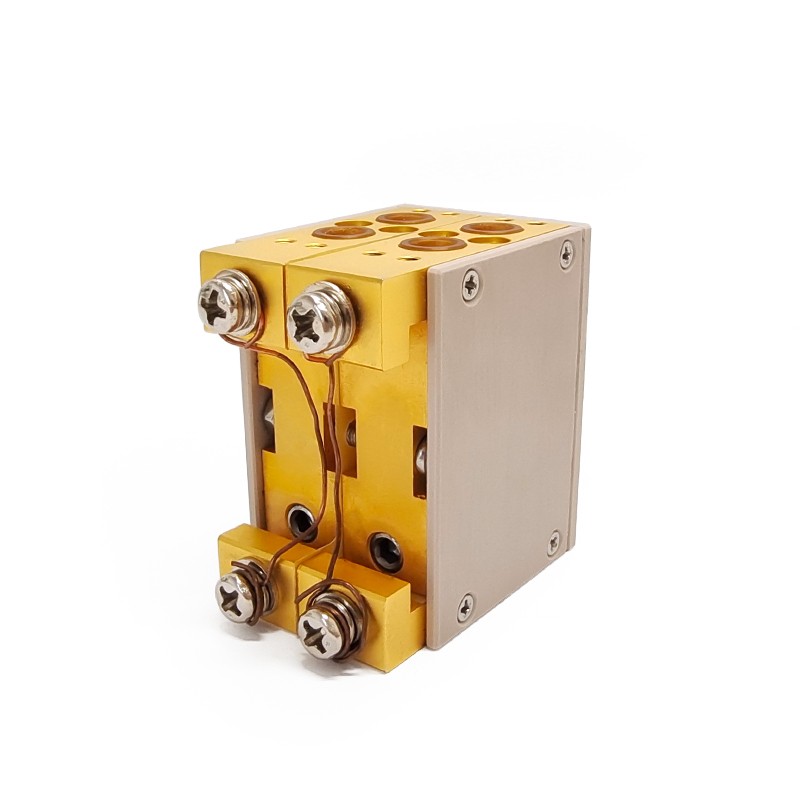

1200w/2400w 808nm and triple wavelength laser diode stack for hair removal beauty machine
1200w/2400w 808nm and triple wavelength laser diode stack for hair removal
Specification:
| Parameter | 2400w model | Unit | |
Optical parameter | Output power | 2400 | W |
Wavelength | 755/808/1064+-10 | nm | |
Bar quantity | 24 | Pcs | |
Bar pitch | 1.9 | mm | |
Spot size | 23.7*22.63 | Mm x mm | |
| Electrical parameter | Current | 95-100 | A |
Voltage | 1.8v/bar | V | |
Duty cycle | ≤10 | % | |
Pulse width | ≤80 | msec | |
Frequency | 1-10 | Hz | |
Water parameter | Water quality | Distilled water or deionized water | |
Water temperature | 18-30 | °C | |
Water pressure | 0.4-0.5 | Mpa | |
Water flow rate | 3.5-4.5 | lpm |
Caution:
- Avoid laser irradiation of eyes and skin when the laser is in operation.
- Dustproof and anti-static measures must be taken during transportation, storage and use.
- The laser should be used at rated current and rated power, otherwise the service life will be shortened.
- The laser needs to maintain good heat dissipation when working.
- Avoid storage and use in a dewy environment. Working above the specified temperature will affect the service life.
Dimension details:
